The Why

In my previous project, I attempted to deploy Openstack entirely with GitOps methodologies, using FluxCD.

I failed. Well, it didn’t fail, but I think I’ve spent too long on it and I need to move on.

Recently, I’ve discovered a project that simeutaneously seems to be a distribution of OpenStack, Kubernetes, and Linux, called StarlingX.

Also:

StarlingX OpenStack is installed and managed as an FluxCD application.

Now, StarlingX, sadly, is not GitOps OpenStack. Configurations to the OpenStack application are done via the command line, or via helm value files. Perhaps I can clone the flux repo they use, but truthfully, I’m not going to worry about it for now.

StarlingX Attempt

There are multiple deployment guides, but I am interested in the “Simplex” install, which documents how to do an All in One install, using a single server, which is all I have.

I also care a lot about “For OpenStack only: Configure data interfaces for controller-0. Data class interfaces are vSwitch interfaces used by vSwitch to provide VM virtio vNIC connectivity to OpenStack Neutron Tenant Networks on the underlying assigned Data Network.”, since I only have one physical interface in use, and the other one will be virtual.

I started by obtaining an ISO, and attempting to install it in a virtual machine. The installer crashed becasue it wanted 500 GB of storage… which is fair I guess.At least it doesn’t crash because I don’t have enough CPU cores or ram.

Just kidding. It doesn’t boot. I don’t know why. Instead it stays stuck on “booting on hard disk”. This probably would work better on a physical machine, but I want to make sure it works on a virtual machine first.

But I install it on my physical server anyways. It doesn’t get an ip address via dhcp.

I understand why people like turnkey solutions, like ESXI now.

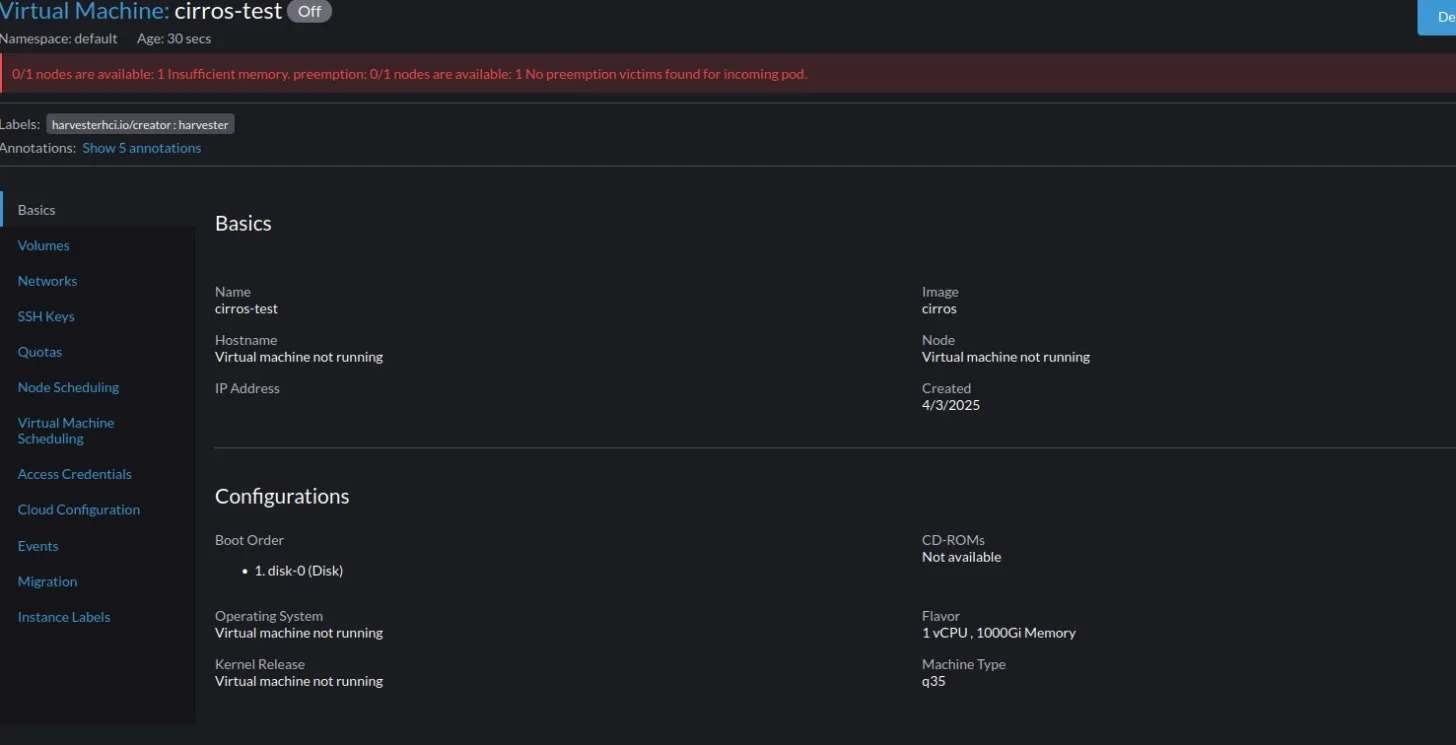

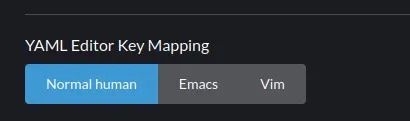

I look into another HCI solution: Suse Harvester. It’s actually a very good software, the UI is great and the install is easy. But if you want any kind of authorization and control over who can see what projects, you have to deploy rancher, which can then “consume” the harvester api and work with it. While excellent, I don’t really feel like having to set up rancher either on another server, or in a virtual machine.

In addition to that, I could not figure out how networking works, and how to set up a bridged network.

But I begin looking into something else, Incus.

Incus:

Can be installed on top of another distro
Has networking I understand, “simply” bridging
Has authorization and authentication by restricting TLS certs to a project
- Not the complex SSO I want, but I need something working

Incus also has some nice features, like it can access a repository of LXC images (similar to Dockerhub), which is cool for testing out many different Linux distros.

Anyway, I did actually attempt to deploy it using Debian backports.

root@b718c16e3b2d:/etc/apt/sources.list.d# apt install incus
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Some packages could not be installed. This may mean that you have
requested an impossible situation or if you are using the unstable
distribution that some required packages have not yet been created
or been moved out of Incoming.
The following information may help to resolve the situation:

The following packages have unmet dependencies:
 incus : Depends: qemu-system-x86 (>= 1:8.0) but 1:7.2+dfsg-7+deb12u12 is to be installed
E: Unable to correct problems, you have held broken packages.

Disappointing.

Instead, I followed the instructions on the github… mostly.

/etc/apt/sources.list.d/zabbly-incus-lts-6.0.sources

Enabled: yes
Types: deb
URIs: https://pkgs.zabbly.com/incus/lts-6.0
Suites: bookworm
Components: main
Architectures: amd64
Signed-By: /etc/apt/keyrings/zabbly.asc

This is a container, I will test a virtual machine install later on.

Installing Debian

https://wiki.debian.org/UEFI#Force_grub-efi_installation_to_the_removable_media_path — gotta do this in the installer

Networking

Switch from ifupdown/iproute2 to NetworkManager

/etc/network/interfaces

# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).

source /etc/network/interfaces.d/*

# The loopback network interface
auto lo
iface lo inet loopback

# The primary network interface
#allow-hotplug enp0s25
#iface enp0s25 inet dhcp

Comment out network interfaces.

/etc/NetworkManager/NetworkManager.conf

[main]
plugins=ifupdown,keyfile

[ifupdown]
managed=true

And changed “managed” to true instead of false.

Once I do this, I use cockpit to convert the main network interface into a bridge that also a ethernet interface.

So I got incus working. In a new/incognito tab, you can go to /ui/login, and follow the instructions to set up the UI.

I attempt to set up an Alpine instance, with the network attatched directly to my ethernet/bridge combo. Yeah, that was a bad idea, as it took my network offline.

Instead, I decided to create a veth, and then attatch that to my bridge (openstack style… ugh. I can’t believe I’m doing this again).

nmcli con add type veth ifname veth1 con-name veth1 veth.peer eth1

And then add the veth1 as a port to the eth0 bridge.

And then after that:

incus network create public0 bridge.external_interfaces=eth1 ipv4.address=none ipv4.dhcp=false ipv6.address=none ipv6.dhcp=false

This essentially creates a public network with no dns and dhcp. Instead, vitual machines will get their required address via dhcp — and they do!

But I realize something: I have two ethernet ports available to me, but I am only using one of them. I should use either a bond or a team to combine them into one, and then convert that merged interface into a bridge that also acts as an ethernet port.

Based on this comparison chart, it looks like Teaming is better.

root@thoth:~# speedtest
Retrieving speedtest.net configuration...
Testing from California Research and Education Network (130.166.90.206)...
Retrieving speedtest.net server list...
Selecting best server based on ping...
Hosted by Melbicom (Los Angeles, CA) [32.80 km]: 2.94 ms
Testing download speed................................................................................
Download: 93.59 Mbit/s
Testing upload speed......................................................................................................
Upload: 86.25 Mbit/s

It looks like my upload and download is capped at 100 Mbit/s. Let’s see if we can double that.

Okay, but it looks like teaming has been deprecated — but in Red Hat, or in general? My Debian system still seems to be able to set up teaming.

Okay, but now that I know I want bonding, which mode do I want? Some modes seem to require configuration on the switch, which rules them out, but I want best performance from the modes I can use.

Testing time!

I did two kinds of tests: one with speedtest, and another with speedtest & speedtest & speedtest, to see if more in parallel would have different results.

Better than would it would be alone, but it still seems bad.

Bond Method Used	Single Speedtest (Mbit/s)	Triple Speedtest Down	Triple Speedtest Up
No Bond	93.59 down, 86.25 up	30.12, 29.33, 23.13	41.62 Mbit/32.98, 52.79
balance-alb	93.60 down, 91.53 up
balance-rr	99.95 down, 161.43 up	58.96, 59.08, 61.67	59.84, 57.80, 59.80
balance-tlb	93.60 down, 87.51 up
802.3ad / LACP	93 down, 90 up	32, 32, 28	31, 27, 29
balance-xor		35, 37, 17	38, 35, 46

Okay, that’s enough enough speedtest tests, I should probably switch to iperf3 to test parallel connections properly.

iperf3 -c ping.online.net -p 5203

Iperf testing:

Bond Method Used	Single Stream (mbit/s)	Multi stream (mbit/s total)
No bond	77 (average), 94 (top)
802.3ad / LAP	94 , 77	80, 70 (no improvement…)
Round Robin	120	167, 143
balance-alb	75	75

I notice that the first packet seems to have a lot less information, and then it’s the stuff after that that usually hits near 100 mbit/s in speed.

(I also ran a quick check with iperf to make sure that both interfaces actually worked, which they did, they both worked and got 70 mbit/s of bandwidth.).

Round robin works by just rotating which interface gets the next packet. According to the internet, it can result in packets arriving out of order, which can lead to slower speeds than a single nic in some cases. I can’t find any posts on this that are newer than 3 years old, so I don’t know if it applies, but I wanted to avoid round robin for that reason.

People say the best mode is LACP, but I don’t get any performance improvement — however, according to Red Hat’s documentation, this mode does seem to require some configuration on the side of the network switch — perhaps without that configuration can still do a bond and combine two interfaces into one, but you don’t get any performance out of it?

But when I run iperf on each of the physical interfaces simeuataneously, perhaps there is some kind of cap? Maybe the “two” ethernet interfaces in the wall are actually only one? But then why does round robin have consistent, better performance, over the theoretical 100 mbit/s limit?

I think it is the former issue:

root@thoth:~# cat /proc/net/bonding/bond0
Ethernet Channel Bonding Driver: v6.1.0-32-amd64

Bonding Mode: IEEE 802.3ad Dynamic link aggregation
Transmit Hash Policy: layer2 (0)
MII Status: up
MII Polling Interval (ms): 100
Up Delay (ms): 0
Down Delay (ms): 0
Peer Notification Delay (ms): 0

802.3ad info
LACP active: on
LACP rate: slow
Min links: 0
Aggregator selection policy (ad_select): stable
System priority: 65535
System MAC address: 48:4d:7e:ec:54:2f
Active Aggregator Info:
        Aggregator ID: 1
        Number of ports: 1
        Actor Key: 7
        Partner Key: 1
        Partner Mac Address: 00:00:00:00:00:00

Slave Interface: enp0s25
MII Status: up
Speed: 100 Mbps
Permanent HW addr: 48:4d:7e:ec:54:2f
Slave queue ID: 0
Aggregator ID: 1

Slave Interface: enp9s0
MII Status: up
Permanent HW addr: 48:4d:7e:ec:54:31
Aggregator ID: 2

Much of the information has been ommitted for brevity, but it seems that if your switch doesn’t support/isn’t configured, then the “Aggregator ID” will be different when it’s supposed to be the same, meaning only one ethernet interface is actually getting used.

Instead of LACP, I set up loadbalancer-alb and use ifstat to moniter network traffic:

 enp9s0             enp0s25             incusbr0             bond0
 KB/s in  KB/s out   KB/s in  KB/s out   KB/s in  KB/s out   KB/s in  KB/s out
    1.17     13.88      1.91      0.12      0.00      0.00      3.09     14.01
    0.88     34.00      2.31      0.12      0.00      0.00      3.19     34.12
    0.87     13.68      1.30      0.12      0.00      0.00      2.17     13.80
    1.27     28.83      3.04      0.12      0.00      0.00      4.31     28.95
    1.02     75.72      8.41      0.70      0.00      0.00      9.43     76.42
    1.06   1645.20     36.86      1.95      0.00      0.00     37.91   1647.15
   10.93  11556.15    461.64   2343.31      0.00      0.00    472.64  13900.86
  662.03  12008.30      0.75  12008.21      0.00      0.00    662.78  24016.50
  378.35  12006.45    224.79  12010.69      0.00      0.00    603.08  24017.15
    1.47  11989.03    621.00  12012.35      0.00      0.00    622.53  24005.57
    1.21  12008.51    617.68  12010.60      0.00      0.00    618.82  24020.51
    0.90  12024.64    614.12  12012.30      0.00      0.00    615.02  24029.94
    1.14  11998.92    545.02  11707.88      0.00      0.00    546.16  23708.20
    0.72  12005.98    438.31   5809.23      0.00      0.00    439.04  17822.20
    1.17  12006.77    491.46   8342.55      0.00      0.00    492.70  20340.93
    1.11   5736.56    445.10  11851.00      0.00      0.00    446.14  17587.56
    2.98     32.26    115.14   4567.08      0.00      0.00    118.12   4599.34

Nice! When running two iperf tests at once, to two different servers, both are used at once, and I get double the network traffic! Both iperf tests report 80 mbit/s.

Then, I convert this bond to a bridge using cockpit. And the process of attempting to do so, the machine goes offline. It’s possible that you cannot convert a bond to the special bridge that also acts as a normal ethernet at the same time, or maybe you cannot use a bond as a bridge at all.

No, it does work. It’s just that the address was reasigned via dhcp, but I wasn’t sshing into the right port (I use port 22022 rather than the default 22).

And then: nmcli con add type veth ifname veth1 con-name veth1 veth.peer eth1

And then disable both from cockpit, but add veth1 as a port to the main bridge.

Then, eth1 can be used as a bridge for incus.

incus network create public0 bridge.external_interfaces=eth1 ipv4.address=none ipv4.dhcp=false ipv6.address=none ipv6.dhcp=false

And then it works.

It’s brought up to me by a friend, that there is a possibility that the limitation of speeds is not on my side, either the NIC or the cable, but instead on CSUN’s side, a 100 mbit/s limitation per mac address.

I test this by running three speedtests simultaneously, two on the side of CSUN’s internet, and one within a virtual machine that has it’s own Mac address. But the test only gets 200 mbit/s total from every device.

However, there is a real possibility I am using the wrong cables, and it’s the cables that are limiting. I will test

Incus Configuration

Firstly, I don’t want the “default” profile. It forces the incusbr0 network on virtual machines, whereas I want users to be able to select an for which network they want — either a public network or an internal network.

A big thing I want is for the layer8 project to have it’s own seperate set of networks and firewall rules, but still be able to have access to the public0 network I have created, so people can create public virtual machines.

From incus project edit layer8:

config:
  features.images: "false"
  features.networks: "false"
  features.networks.zones: "true"
  features.profiles: "true"
  features.storage.buckets: "true"
  features.storage.volumes: "false"
  restricted: "true"
  restricted.networks.access: public0, internal0
description: ""
name: layer8
used_by:
- /1.0/profiles/default?project=layer8

There is no network named internal0 — instead I add one in after I create the project. With this, they would be limited to a single internal network, and public network.

Authorization

incus config trust add-certificate --projects layer8 --restricted layer8.crt

incus config trust add --projects layer8 --restricted layer8.crt

And with this, my instance is restricted.

Mostly. Storage pools and storage doesn’t seem to work at all.

So I create another storage pool called “layer8” from the UI. But this fails, and doesn’t seem to be accessible from the layer8 project.

I play around with it more, but I think what I need to do is write an “authorization scriptlet” that explicitly gives access for the layer8 storage pool to those users.

The language used in these “scriptlets” is Starlark… which is not documented on the actual authorization scriptlet section. Thankfully, there is another instance placement scriptlet, which talks about the language and parameters taken, and how to actually use and set the scriptlet.

Of course, this is still pretty unclear. What is an object? Incus has auto generated api documentation, including on what I am assuming is an “object”, StoragePools.

So I need a scriptlet that allows the Layer 8 Certificate, to access storage pool objects named

If if I have to do this anyways, what was the point of trying to avoid the openid + openfga (I would have to write code) setup?!

So here is my attempt at a scriplet that allows all access:

allowall.star

def authorize(details, object, entitlement):
  return True

cat allowall.star | incus config set authorization.scriptlet=-

And it works! The Layer 8 Certificate can get access to all resources.

Now let’s try to do it for real:

auth.star

def authorize(details, object, entitlement):
  if details.Username == "025a3516ca2c":
    if object.name == "layer8":
      return True
  else:
    return False

Okay. And now nothing has access to anything. It seems that these scriptlets happen before the authorizations happen, and not after. Meaning that you have to actually write scriptlets to do something

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1":
    return True
  if details.Username == "025a3516ca2c":
    if details.IsAllProjectsRequest:
      return False
    if details.ProjectName == "layer8":
      return True
    if object.name == "layer8":
      return True
  else:
    return False

At first I get an error:

Failed to run: string has no .name field or method

So it seems that object doesn’t actually have an atribute named anything. I can’t seem to find any documentation on this.

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1":
    return True
  if details.Username == "025a3516ca2c":
    if details.IsAllProjectsRequest:
      return False
    if details.ProjectName == "layer8":
      return True
    if object.name == "layer8":
      return True
  else:
    return False

And now the incus server hangs… Super annoying.

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1":
    return True
  else:
    return False

Okay, and this fails. At this point. I also tried logging, which only seems to work if it’s a warning, and not an info level log.

def authorize(details, object, entitlement):
  log_warn(details.Username)
  log_warn(object)
  return True

and:

(clipped for brevity) server:incus"
(clipped for brevity) horization scriptlet: 96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2"
(clipped for brevity) horization scriptlet: server:incus"

It seems that the certificate that is used, is not the clipped version listed by incus config trust list

root@thoth:~# incus config trust list
+--------------+--------+-------------+--------------+----------------------+
|     NAME     |  TYPE  | DESCRIPTION | FINGERPRINT  |     EXPIRY DATE      |
+--------------+--------+-------------+--------------+----------------------+
| incus-ui.crt | client |             | 96bd207fe6a1 | 2027/12/31 19:33 PST |
+--------------+--------+-------------+--------------+----------------------+
| layer8.crt   | client |             | 025a3516ca2c | 2027/12/31 19:54 PST |
+--------------+--------+-------------+--------------+----------------------+

But, I did figure out how storage pool is getting referred to:

orization scriptlet: 96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2"
orization scriptlet: storage_pool:layer8"

So I think the entire “object” is actually just a string. But it’s named object?!

I found the code, though. And it seems like “object”, is in fact a string.

func AuthorizationRun(l logger.Logger, details *common.RequestDetails, object string, entitlement string) (bool, error) {

def authorize(details, object, entitlement):
  log_warn(details)
  log_warn(object)
  log_warn(entitlement)
  return True

journalctl -xeu incus

horization scriptlet: {\"Username\": \"96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe56>
horization scriptlet: storage_pool:layer8"
horization scriptlet: can_edit"
horization scriptlet: {\"Username\": \"96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe56>
horization scriptlet: server:incus"
horization scriptlet: can_view_resources"
horization scriptlet: {\"Username\": \"96bd207fe6a1b5ca48284f012e036fff4312

With this, I can design an authorization function that actually works.

Also:

root@thoth:~# incus config trust show 96bd207fe6a1
name: incus-ui.crt
type: client
restricted: false
fingerprint: 96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2

By asking to show me information about the short version of the certificate, I can get the full version.

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2":
    return True
  if details.Username == "025a3516ca2c622a93446548954e33d75eafa3e8173d0d6a435fc27d4072932e":
    if details.ProjectName == "layer8":
      return True
    if object == "storage_pool:layer8":
      return True
    if details.IsAllProjectsRequest == True:
      return False
  else:
    return False

But this doesn’t work. It seems that the server api itself, and projects, are objects that are controlled by access control. I have to allow access.

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2":
    return True
  if details.Username == "025a3516ca2c622a93446548954e33d75eafa3e8173d0d6a435fc27d4072932e":
    if details.IsAllProjectsRequest == True:
      return False
    if object == "project:layer8":
      if entitlement == "can_view":
        return True
    if details.ProjectName == "layer8":
      return True
    if details.ProjectName == "default":
      if entitlement == "can_view_resources":
        return True
    if object == "storage_pool:layer8":
      return True
    if object == "server:incus":
      if entitlement == "can_view_sensitive":
        return True
      if entitlement == "can_view":
        return True
  else:
    return False

After this I do some testing, and it mostly works — except the Layer 8 certificate has access to the default storage pool, including being able to upload isos, which is not what I want. But, if I remove the can_view_resources bit, then the Layer 8 Certificate cannot see the disk space used in that storage pool — which I may not want.

I also may need to give access to the objects "profile:layer8/default", since that seems to exist in the default project.

So I asked on the creators youtube stream, if there is any way to associate a storage pool to a project, for a restricted certificate.

He says that you can set a limit of 0 for the disk space of a storage pool, for a project, and then that project won’t be able to access that storage pool. I don’t like this solution, as I want my authorization logic to be deny by default, and explicitly allow access to certain resources. However, it does give me an idea:

What if I deny access to storage pools not named layer8? Well, I would first have to filter for an object, a string that starts with “storage_pool:”

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2":
    return True
  if details.Username == "025a3516ca2c622a93446548954e33d75eafa3e8173d0d6a435fc27d4072932e":
    if object.startswith("storage_pool:"):
      if object != "storage_pool:layer8":
        return False
      return True
    if details.IsAllProjectsRequest == True:
      return False
    if object == "project:layer8":
      if entitlement == "can_view":
        return True
    if details.ProjectName == "layer8":
      return True
    if details.ProjectName == "default":
      if entitlement == "can_view_resources":
        return True
    if object == "server:incus":
      if entitlement == "can_view":
        return True
      if entitlement == "can_view_resources":
        return True
  else:
    return False

This still doesn’t restrict the Layer 8 certificate from uploading to the default storage pool. Actually now, Incus seems to crash/freeze, and I have to restart the systemd service in order to get back.

Okay. At this point, attempting to upload an ISO crashes Incus (testing with the allow all log script). The API won’t load, and the command line just hangs as well. Systemd logs don’t say anything, so I’m stuck. I can restart Incus, but this changes testing my authorization scriptlets from annoying to painful.

I’m going to update the website this, and make a post in the Incus forum.

Post: https://discuss.linuxcontainers.org/t/authorization-scriptlet-how-to-allow-a-restricted-certificate-to-access-a-single-storage-pool/23497/2

But I need a solution now, pretty much.

def authorize(details, object, entitlement):
  if details.Username == "96bd207fe6a1b5ca48284f012e036fff43126870c52949479fe5647c61791db2":
    return True
  if details.Username == "025a3516ca2c622a93446548954e33d75eafa3e8173d0d6a435fc27d4072932e":
    if object.startswith("storage_pool:"):
      if object != "storage_pool:layer8":
        return False
      return True
    if details.IsAllProjectsRequest == True:
      return False
    if object == "project:layer8":
      if entitlement == "can_view":
        return True
    if object == "profile:layer8/default":
      return True
    if details.ProjectName == "layer8":
      return True
    if details.ProjectName == "default":
      if entitlement == "can_view_resources":
        return True
    if object == "server:incus":
      if entitlement == "can_view":
        return True
      if entitlement == "can_view_resources":
        return True
  else:
    return False

This, plus:

incus project set layer8 limits.disk.pool.default=0

are what I ending up using.

Okay. It doesn’t work the way I want. But I’m close enough, so I guess I’ll just roll with it instead.
